Q81HP Pneumatic angle seat valve

Q81HP Pneumatic angle seat valve

Q81HP pneumatic valves are widely used in the pharmaceutical, food, environmental protection, water treatment and other industries, where there is a need for hygiene.

  • Quality
  • Price
  • Fast
Complete solenoid valve solution
Salse:+86-577-86989863 13456060066
Fax:+86-577-86920866
Service:+86-577-86926655 85857018
  • Summary

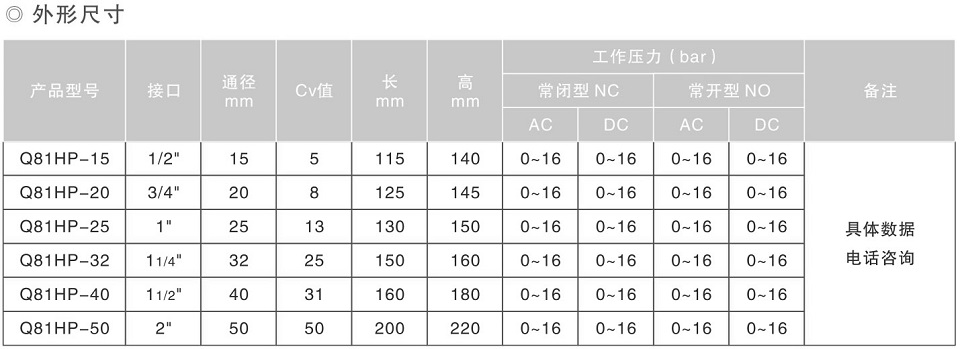

  • Model
  • Parameter

Application

Q81HP pneumatic valves are widely used in the pharmaceutical, food, environmental protection, water treatment and other industries, where there is a need for hygiene.

Features

Exquisite appearance, sanitary standard; German technology, stable performance; authoritative coils, not easy to burn; in the pipeline system with high requirements for hygiene.

Principle

The valve is a normally closed two-position two-way piston angle seat valve. After passing through the air source, the piston pushes the valve core to move upward under the action of air pressure, and the main valve is opened, and the air source is turned off and the spring is replaced by the return spring. Main valve closed

Parameters

Control method: normally open, normally closed.

Body material: stainless steel, SS304, SS316, SS316L.

Applicable medium: water, gas, clean water source.

Pressure range: 0~1.6MPa

Temperature range: -20~200.

Medium viscosity: less than 50C St (more than custom).

Protective performance: dustproof, waterproof and explosion-proof. Choose according to working conditions

Connection method: clamp.
